Custom iron on hat patches deliver instant personality to any cap, beanie, or bucket hat without a single stitch.

Let's Talk About What Actually Goes Into These Things

These heat-activated emblems fuse fabric, TPU, silicone, and printing ink into one seamless graphic unit that sits flat, resists peeling, and survives dozens of wash cycles. Designed for brands, teams, streetwear labels, and hobbyists alike, custom iron on hat patches turn plain headwear into a wearable statement in under 15 seconds of pressing.

Every element of the patch—from the base substrate to the topcoat finish—serves a specific visual and functional role. The sections below break down each design component so you can spec the exact look and performance your project demands.

The Five Layers That Make or Break Your Patch

1. Base Material Layer

The foundation determines flexibility, thickness, and how the patch conforms to curved hat panels. Three primary substrates dominate production:

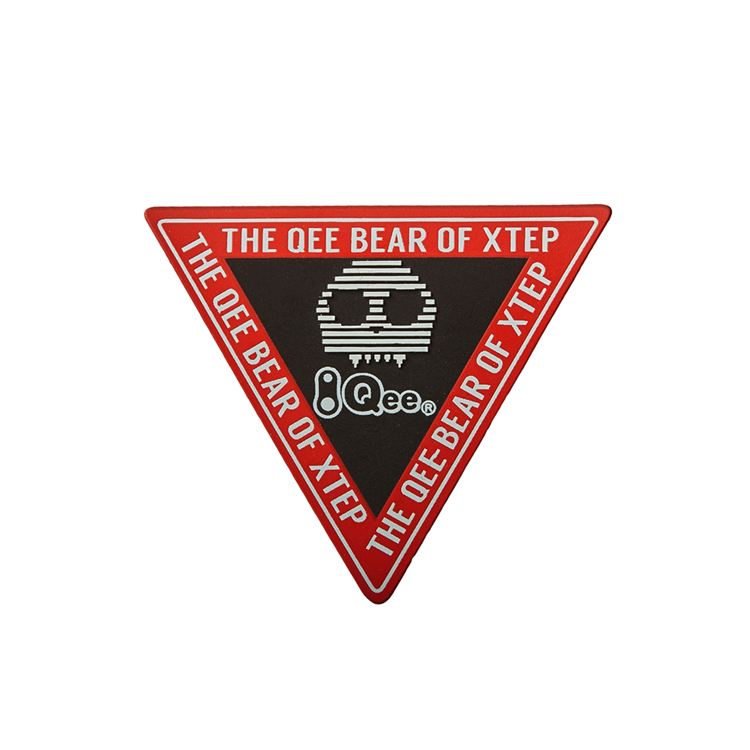

• TPU (Thermoplastic Polyurethane): Delivers a rubbery, slightly matte surface with excellent stretch. Ideal for sporty or tactical hat designs that flex during wear.
• Silicone: Offers a soft-touch, three-dimensional raised effect. Silicone pours into molds, allowing sculpted textures, embossed lettering, and layered depth that flat prints cannot achieve.
• Woven / Twill Fabric Base: A classic textile carrier for embroidered-style visuals combined with iron-on convenience.

2. Printing Ink System

High-resolution graphics rely on specialized ink formulations:

• Plastisol ink for thick, opaque color blocks on dark fabrics.
• Water-based pigment ink for soft-hand, breathable prints on light-colored cotton or polyester hat panels.
• UV-curable ink for photographic detail, gradients, and CMYK full-color artwork with sharp edge definition.

3. Heat-Activated Adhesive Backing

A copolyamide or polyurethane hot-melt film coats the reverse side. When pressed at the correct temperature, the adhesive liquefies, penetrates hat fabric fibers, and re-solidifies into a permanent bond. This layer is the engineering heart of custom iron on hat patches.

4. Protective Topcoat

A thin polyurethane or silicone clear coat shields printed artwork from UV fading, abrasion, and moisture. Matte, gloss, and satin finishes are all available to match the hat's overall aesthetic.

5. Die-Cut Contour

Laser cutting or steel-die stamping shapes each patch to the exact outline of the artwork—no visible border unless the design intentionally includes one. Precision die-cutting keeps edges clean even on intricate silhouettes.

Specs You Probably Need Before Hitting "Order"

Parameter	Detail
Product Name	Custom Iron On Hat Patches
Available Materials	TPU / Silicone / Printing Ink / Woven Fabric
Thickness Range	0.3 mm – 2.5 mm (material dependent)
Size Range	20 mm × 20 mm to 120 mm × 120 mm
Shape Options	Circle, Square, Shield, Custom Contour
Color Matching	Pantone / CMYK / Metallic / Fluorescent
Adhesive Type	Copolyamide Hot-Melt Film
Activation Temperature	140 °C – 165 °C (285 °F – 330 °F)
Press Time	10 – 18 seconds
Press Pressure	3 – 5 kg/cm²
Wash Durability	50+ home wash cycles (gentle)
MOQ	100 pieces (standard) / 50 pieces (sample run)
Lead Time	7 – 12 business days after artwork approval
Packaging	Individual poly bag / bulk 500 pcs per carton

TPU vs Silicone vs Printed Fabric – Which One Fits Your Hat

Feature	TPU	Silicone	Printing Ink on Fabric
Surface Feel	Smooth, slightly rubbery	Soft, 3D raised	Flat, textile touch
Max Color Layers	4	6+ (molded layers)	Unlimited (CMYK)
Flexibility	★★★★★	★★★★☆	★★★☆☆
3D / Emboss Effect	Low	High	Low
Best For	Sport caps, tactical hats	Premium branding, logos	Full-color illustrations
Min Order	100 pcs	200 pcs	100 pcs
Unit Cost Tier	$1.1	$1.5	$1.2

All the Little Extras You Can Tack On

Option	Choices
Finish	Matte / Gloss / Satin / Soft-Touch
Edge Treatment	Laser-cut / Hot-cut / Merrow border
Backing	Iron-on only / Iron-on + Velcro / Iron-on + Pin-back
Special Effects	Glow-in-the-dark ink / Reflective / Metallic foil / Glitter
Packaging	Bulk / Retail card / Individual sleeve with header
Artwork Format	AI / PDF / PNG (300 dpi minimum)

Where These Patches Actually End Up

Custom iron on hat patches perform across a wide spectrum of headwear and branding situations:

• Streetwear & Fashion Caps: Full-color CMYK prints on snapbacks and dad hats.
• Corporate & Promotional Hats: Single-color silicone logos for trade-show giveaways.
• Sports Team Uniforms: TPU patches that stretch with moisture-wicking performance fabric.
• Military & Tactical Gear: Infrared-reflective ink on subdued-color TPU bases.
• Event & Festival Merchandise: Glow-in-the-dark patches on bucket hats for nighttime visibility.
• School & Club Identity: Small embroidered-style fabric patches pressed onto beanies and berets.

How to Press Without Ruining the Hat

Achieving a flawless bond with custom iron on hat patches requires three controlled variables: heat, time, and pressure.

1. Preheat the heat press or household iron to the temperature listed in the specification table above.
2. Position the patch adhesive-side down on the hat panel. Use heat-resistant tape to prevent shifting.
3. Press firmly for 10–18 seconds. For curved hat areas, use a cap-specific pressing attachment or a rounded pressing pillow.
4. Cool for 30 seconds before peeling the carrier sheet (if applicable).
5. Post-press the reverse side of the fabric for an additional 5 seconds to drive adhesive deeper into fibers.

Pro tip: Always run a test press on a scrap piece of the same hat fabric before committing to a full production run.

Will It Survive the Wash – The Numbers

Test	Standard	Result
Home Wash (40 °C, gentle)	ISO 105-C06	No edge lift after 50 cycles
Dry Cleaning (Perchloroethylene)	ISO 3175	Pass – 5 cycles
Rub Fastness (dry)	ISO 105-X12	Grade 4–5
UV Exposure (100 hrs)	ASTM G154	ΔE < 2.0
Peel Strength	Internal ASTM D903	≥ 8 N/25 mm

Getting Your Artwork Ready Without the Back-and-Forth

Before production begins, submit artwork that meets these requirements:

• Vector file preferred (AI, EPS, or SVG).
• Raster images at 300 dpi minimum, CMYK color mode.
• All fonts converted to outlines.
• Bleed area of 1 mm beyond the final cut line.
• Indicate exact Pantone codes for brand-critical colors.
• Specify material, finish, and any special effects in the order notes.

From Artwork to Doorstep – The Timeline

1. Submit artwork and select material (TPU, silicone, or printed fabric).
2. Receive a digital proof within 24 hours for approval.
3. Approve a physical sample (optional, shipped in 3–5 days).
4. Confirm bulk quantity and lock in pricing.
5. Production runs 7–12 business days.
6. QC inspection on every batch before packing.
7. Ship via express courier, air freight, or sea freight depending on volume.

So Go Ahead and Make That Hat Yours

Custom iron on hat patches compress branding, artistry, and textile engineering into a single small-format product. Whether the goal is a soft-raised silicone emblem on a premium fitted cap or a vivid full-color TPU graphic on a promotional trucker hat, the design elements outlined above give complete control over texture, color depth, durability, and cost.

Select the substrate, lock in the ink system, choose a finish, and press. The hat transforms. The brand sticks. Literally.

Ready to spec your next run of custom iron on hat patches? Upload artwork, pick a material from the comparison table, and get a digital proof within one business day.
