There is a moment in every brand launch, uniform rollout, or merch drop where a small piece of fabric decides whether the whole thing feels premium or forgettable. That piece is your patch.

And when it comes to reproducing intricate logos, photorealistic artwork, and unlimited color gradients without a single thread out of place, printing patches stand in a league of their own.

The Artwork Layer Where Color Meets Precision

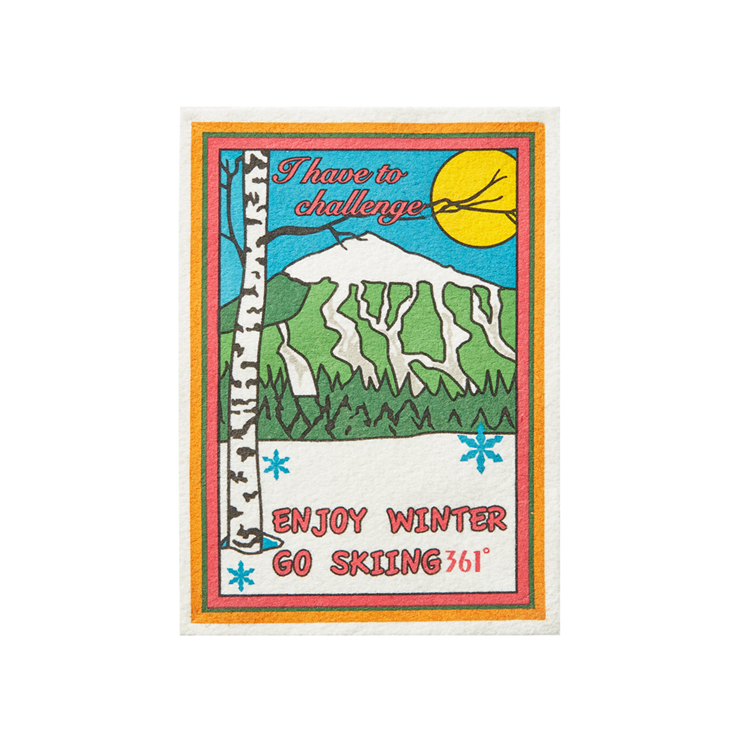

Printing patches begin their life as digital files, and the translation from screen to fabric is where the magic happens. Our production line runs dye-sublimation and high-resolution digital inkjet systems that push CMYK ink directly into polyester or cotton fibers. The result is a photo-grade image with no thread texture interrupting fine lines or gradients.

Key artwork capabilities include full CMYK spectrum reproduction, up to four additional Pantone spot colors for brand-accurate hues, and print resolutions ranging from 300 to 1200 DPI. Minimum line weight sits at just 0.3 mm, meaning even the thinnest serif on a logotype survives the transfer intact. Registration accuracy holds within ±0.2 mm, so multi-layer designs never bleed or misalign.

Gradient handling deserves a special mention. Unlike embroidered patches that approximate color shifts through thread blending, printing patches reproduce smooth fades, drop shadows, and halftone patterns exactly as your designer intended. The halftone threshold starts at 15 percent dot coverage, giving you clean transitions even in shadow-heavy artwork.

Border and Edge Treatment Options

The edge of a patch frames the entire design, and printing patches offer four distinct finishing paths.

Hot-cut sealed edge uses a heated blade that melts the polyester fiber as it cuts, creating a clean, slightly rounded border that resists fraying. This is the default for most orders and works beautifully with irregular shapes.

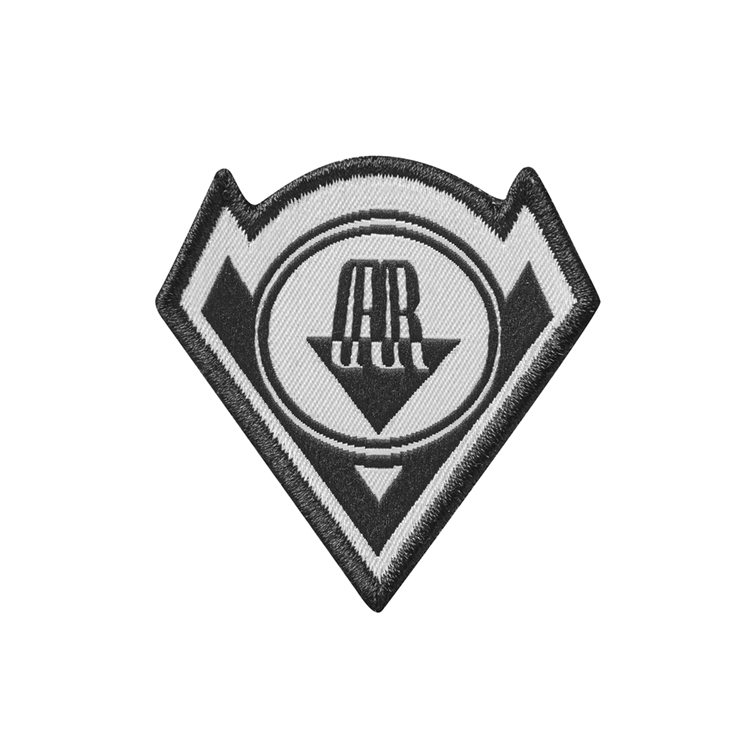

Merrowed overlock border wraps a continuous thread over the raw edge, producing a raised, rope-like frame. It adds a classic, tactile quality and comes in widths from 1.5 mm to 4 mm.

Laser-cut contour vaporizes the fabric edge with pinpoint accuracy, ideal for complex silhouettes, interior cutouts, or negative-space designs where a traditional border would clutter the look.

Every edge option can be color-matched to your artwork, so the border either disappears into the design or contrasts boldly against it.

Shape and Die-Cut Profile

Printing patches are not limited to circles and rectangles. Our die-cutting and laser systems handle any closed silhouette you can vectorize. Standard shapes include circle, rectangle, shield, oval, and hexagon. Custom die-cut profiles allow for star points, scalloped edges, character outlines, or architectural shapes.

Symmetry tolerance on die-cut pieces is held to ±0.5 mm. Interior cutouts and negative-space windows require a minimum detail width of 1.0 mm to maintain structural integrity through repeated wear and washing.

Backing and Attachment Systems

How the patch attaches to the garment or gear matters as much as how it looks. Our printing patches ship with your choice of backing.

Backing Type	Activation	Best Use Case
Iron-on adhesive	150–165 °C, 12–18 sec press	Quick application on cotton and poly blends
Sew-on (no adhesive)	Needle and thread	Uniforms, heavy denim, leather
Velcro hook-and-loop	Press-fit	Tactical gear, interchangeable badges
Magnetic	Snap closure	Display boards, temporary branding
Self-adhesive peel-and-stick	Peel liner, press flat	Packaging, stickers, promo handouts
Pin-back clutch	Push pin through fabric	Lapel wear, collector items

Iron-on adhesive is the most popular choice for apparel brands. The bond strength exceeds 12 N per 25 mm width, and the adhesive survives at least 50 standard wash cycles without lifting.

Surface Finish and Protective Coating

Fresh off the press, printing patches already look vibrant. A surface coating locks that vibrancy in for the long haul.

• Matte lamination kills glare and gives a modern, understated feel.
• Gloss lamination amplifies color saturation and adds a slight sheen.
• Soft-touch coating creates a velvety, anti-scratch surface that begs to be rubbed between fingers.
• UV-protective clear coat is the outdoor-grade option, keeping ΔE color shift below 2.0 after a full year of direct sunlight exposure.

You can also combine coatings. A matte base with a spot-gloss overlay on the logo, for example, creates a subtle dimensional contrast that catches the eye.

Core Product Specifications at a Glance

Parameter	Specification
Printing method	Dye-sublimation, digital inkjet, or screen print
Color range	Full CMYK + up to 4 Pantone spots
Print resolution	300 – 1200 DPI
Base fabric options	Polyester twill, cotton canvas, satin, recycled rPET
Patch thickness	1.2 mm – 2.8 mm
Weight (75 mm patch)	6 g – 14 g
Minimum order	50 pieces
Standard turnaround	7 – 12 business days
Dimensional tolerance	±1.0 mm
Max single-patch print area	240 × 240 mm

Base Material Comparison

Choosing the right substrate changes the hand feel, drape, and wash performance of your printing patches.

Material	Texture	Ideal Application	Wash Rating	Color Capability
Polyester twill	Smooth diagonal weave	Corporate logos, gradients	60 °C, 50+ cycles	Unlimited CMYK
Cotton canvas	Matte, natural grain	Heritage and vintage branding	40 °C, 30+ cycles	Up to 8 spot colors
Satin polyester	Fine, glossy weave	Fashion labels, luxury merch	30 °C, 20+ cycles	Unlimited CMYK
Recycled rPET twill	Soft diagonal weave	Eco-conscious campaigns	40 °C, 40+ cycles	Unlimited CMYK

All four substrates accept iron-on, sew-on, and Velcro backings. The recycled rPET option carries GRS (Global Recycled Standard) certification for brands that need verifiable sustainability documentation.

Ink, Curing, and Colorfastness

We use water-based pigment inks certified to OEKO-TEX Standard 100 Class I, meaning they are safe for direct skin contact, including children's garments. The curing process bakes the ink at 190–210 °C for 45–60 seconds, bonding pigment molecules into the fiber rather than sitting on top.

Colorfastness is rated Grade 4–5 under ISO 105-C06 testing, which simulates aggressive laundering with detergent at elevated temperatures. In plain terms, your printing patches will not fade noticeably before the garment itself starts to wear.

Size Range Guide

Size Category	Dimensions (mm)	Typical Placement
Small	25 × 25 – 40 × 40	Cap front, lapel, collar tab
Medium	50 × 50 – 75 × 75	Chest left, sleeve, backpack flap
Large	80 × 80 – 120 × 120	Jacket back, tote panel
Extra-large / custom	Up to 250 × 250	Statement décor, event banners

Need something between sizes? We cut to any dimension within the 240 × 240 mm maximum print window.

Customization Extras That Set Your Patch Apart

Standard full-color printing is only the starting point. Layer on any combination of these upgrades.

• Variable data printing for sequential serial numbers, unique QR codes, or barcodes on every single patch.
• Personalized text such as employee names or event dates, printed per piece.
• Metallic foil accents in gold, silver, or copper, heat-pressed over the printed surface for a premium gleam.
• Glow-in-the-dark ink layer for nighttime visibility or novelty appeal.
• 3M Scotchlite reflective ink for safety gear and outdoor apparel.
• Hybrid embroidery-plus-print combining a printed center panel with a stitched merrowed border for mixed texture.

Durability and Compliance Data

Test / Standard	Result
Wash durability (ISO 6330)	50+ cycles, less than 5 percent color shift
Abrasion resistance (Martindale)	20,000+ rubs
UV resistance, 1 year outdoor	ΔE below 2.0 with UV coating
Iron-on bond strength	12 N / 25 mm minimum
OEKO-TEX Standard 100	Class I certified
REACH and CPSIA compliance	Pass
Flammability (16 CFR 1610)	Class 1, Normal

These numbers matter when your printing patches end up on workwear that goes through industrial laundry three times a week, or on a backpack dragged through airports for years.

Packaging and Shipping Details

Every patch ships individually wrapped in an OPP poly bag, with a biodegradable film option available on request. Bulk cartons hold 100, 500, or 1,000 pieces depending on patch size. We handle DHL Express, FedEx International, and sea freight for large-volume orders. HS Code classification falls under 5807.10 or 5807.90, and country-of-origin labels are applied per your import requirements.

From Artwork to Your Doorstep in Seven Steps

1. Upload your vector or 300 DPI raster file (AI, PDF, or PNG).
2. Receive a digital proof within 24 hours.
3. Approve or request up to three revision rounds at no extra charge.
4. Order a physical sample if you want to feel the fabric before committing (3–5 day turnaround).
5. Bulk production kicks off the moment you sign off.
6. Every batch passes AQL 2.5 quality inspection.
7. Patches are packed, labeled, and dispatched with tracking.

Quick Answers to Common Printing Patches Questions

Can printing patches reproduce photographic images?
Absolutely. The 300–1200 DPI inkjet and dye-sub processes handle continuous-tone photographs with smooth gradients, skin tones, and fine detail that embroidery simply cannot replicate.

What is the smallest legible text size on a 50 mm patch?
We recommend a minimum cap height of 2.5 mm. Below that, individual letters start to merge, especially on textured canvas substrates.

Do printing patches survive industrial laundering?
Yes. The polyester twill base with heat-cured pigment ink is rated for 50+ wash cycles at 60 °C with less than 5 percent measurable color shift.

Can I mix printing with embroidery on one patch?
Yes. Our hybrid process prints the central artwork and frames it with a merrowed or chain-stitch embroidered border, giving you photographic detail plus tactile thread texture.

Ready to Put Your Design on Fabric?

Printing patches turn any vector file, photograph, or hand-drawn sketch into a durable, full-color badge that sticks, sews, or velcros onto virtually any surface. Pick your fabric, choose your backing, select a finish, and send us the artwork. We handle the rest.

Start your printing patches order today and get a free digital proof within 24 hours. Your design deserves to look this sharp.
